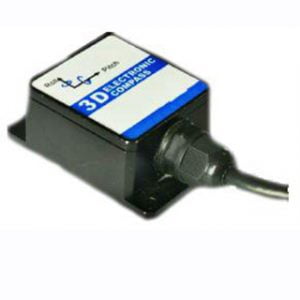

    ER-EC-295 Nine-Axis Full Attitude Electronic Compass

    Introduction

    ER-EC-295 Nine-Axis Full Attitude Electronic Compass is a micro inertial sensor specially designed to provide high precision roll, pitch and azimuth measurements for magnetic interference and dynamic motion environments. The high cost performance makes ER-EC-295 very suitable for high heading accuracy requirements.

    Features

    Three-axis gyro three-axis accelerometer three-axis magnetometer

    Dynamic static measurement

    Temperature offset tracking algorithm eliminates drift

    Heading accuracy: 2°

    Wide temperature range: -40°C~+85°C

    Small size profile: L55×W37×H24 (mm)

    With hard magnetic, soft magnetic and tilt compensation

    Applications

    Satellite tracking

    Petroleum geological survey

    Optical range finder

    GPS-assisted navigation

    Individual combat equipment

    Ocean test

    Underwater navigation

    Mechanical control

    Specifications

    Nine-Axis Full Attitude Electronic Compass

    Compass heading parameter Heading accuracy 2°(RMS, Static, compass working mode)
    Resolution 3°(RMS, Dynamic, attitude mode)
    Repeatability 0.1°
    Compass tilt parameter

    Roll accuracy

    Pitch accuracy 2º(RMS, Dynamic); 0.5º(RMS, Static)
    / 2º(RMS, Dynamic); 0.5º(RMS, Static)
    Resolution 0.01°
    Tilt range Pitch±90°, Roll±180°
    Compass tilt parameter Hard magnetic calibration has
    Soft magnetic calibration has
    Limited tilt user calibration has
    Physical characteristics Size L55xW37xH24 (mm)
    Weight 80g
    Output form RS232/485/TTL interface
    Interface characteristics Start delay <3s
    Maximum sampling rate 100 times/s
    RS-232 communication rate 2400 to 115200 baud rate
    Surroundings 3000g
