ER-3QA-02E (3×10-5~1×10-4g) Features:
1. High performance 3-Axis;
2. Digital output;
3. Low power consumption.

Triaxial Quartz Accelerometer

Triaxial Quartz Accelerometer

Get Price Now



    Share to:

    Introduction

    ER-3QA-02E High Performance Triaxial Quartz Accelerometer

    Introduction
    ER-3QA-02E High Performance Triaxial Quartz Accelerometer with high performance,is composed of three A15 acceleration sensors, 24 bit high precision A/D converter, 16 bit ultra low power consumption single chip microcomputer and mechanical structure. ER-3QA-02E has the features of digital output, high precision installation error, temperature compensation and low power consumption.

    Specifications

    Parameters Unit ER-3QA-02E1 ER-3QA-02E2 ER-3QA-02E3 ER-3QA-02E4
    Range g ±2 ±4 ±8 ±16
    3H stability (0g) g 3×10-5 4×10-5 5×10-5 1×10-4
    Scale factor v/g 1±0.1 0.5±0.05 0.25±0.025 0.125±0.0125
    Power supply v ±15 ±15 ±15 ±15
    Output frequency Hz 200 200 200 200
    Electrical interface / Rs422 Rs422 Rs422 Rs422
    Working temperature -40~+60 -40~+60 -40~+60 -40~+60
    Storage temperature -45~+65 -45~+65 -45~+65 -45~+65
    Vibration / 8g   20~2000Hz 60min
    Shock / 120g, 4.5ms, 1/2sin 120g, 4.5ms, 1/2sin 120g, 4.5ms, 1/2sin 120g, 4.5ms, 1/2sin
    Size mm 60×60×39 60×60×39 60×60×39 60×60×39

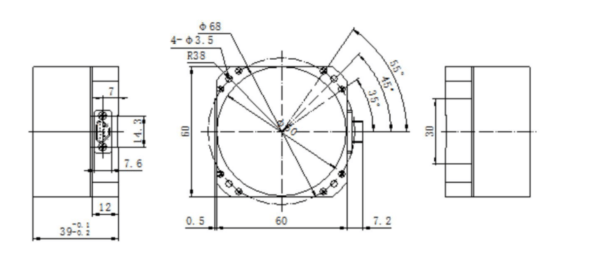

    Install dimension

    quartz accelerometer



    422 Output Interface Protocol

    Baud Rate: 460800               Parity Bit: None

    Data Bits: 8                    Stop Bits: 1

    Update Rate: 200hz

    Data Packet Format

    No. Field Name Byte Count Description
    1~2 Frame Header 2 0XA5  0XB6
    3~6 X Accelerometer Output 4 Long integer data, little-endian (low byte first)
    7~10 Y Accelerometer Output 4 Long integer data, little-endian (low byte first)
    11~14 Z Accelerometer Output 4 Long integer data, little-endian (low byte first)
    15 Frame Counter 1 0X00-0XFF
    16 Checksum 1 Sum of bytes 2 to 15, no carry, initial value 0X00
