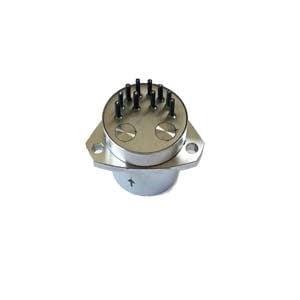

ER-QA-02B Anti-Vibration and High-Temp Accelerometer for Oil & Gas
Applications
ER-QA-02B Anti-Vibration & High-Temp Accelerometer for Oil & Gas Field is specially applied for continuous north seeking systems, also can be widely used in other harsh working conditions.
Features
Anti-vibration
High accuracy
Specifications
No. | Parameters | ER-QA-02B02 | ER-QA-02B01 | Unit |
1 | Bias | ≤10 | ≤10 | mg |
2 | Scale Factor | 2.5~3.5 | 2.5~3.5 | mA/g |
3 | Bias Temp Coefficient | ≤60 | ≤80 | ug/℃ |
4 | Scale Factor Temp Coefficient (20~120℃) | ≤80 | ≤100 | ppm/℃ |
5 | Scale Factor Temp Coefficient (120~150℃) | ≤500 | ≤500 | ppm/℃ |
6 | Bias Repeatability | ≤100 (3~7 days) | ≤100 (one day) | μg |
7 | Scale Factor Repeatability | ≤100 (3~7 days) | ≤100 (one day) | ppm |
8 | Acceleration Range | ±10 | ±10 | g |
9 | Vibration | 20g (20~2000Hz) | 20g (20~2000Hz) | g, Hz |
10 | Shock | 1000g, 0.5ms, 1/2sin | 1000g, 0.5ms,1/2sin | g, ms |
11 | Operating Temp | -45~+150 | -45~+150 | ℃ |
12 | Weight | ≤55 | ≤55 | g |
13 | Operating Voltage | ±7~± 12 | ±7~± 12 | V |

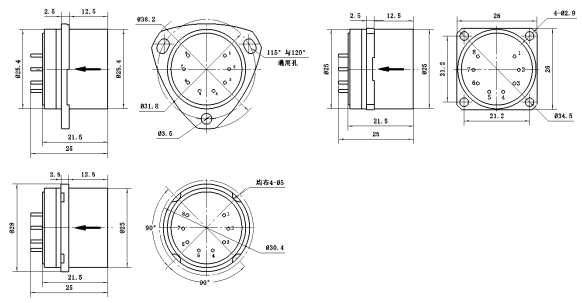

Install dimension:

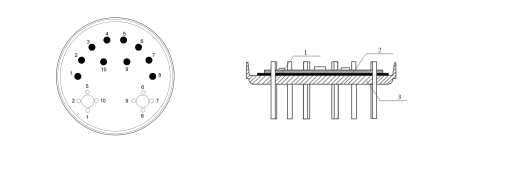

The electrical interface relationship of the servo circuit is shown in Table 1. The terminal arrangement and description should comply with the requirements of Figure 1. The terminal arrangement is a bottom view (pins upward).
Table 1 Servo circuit electrical interface relationship
Pinout
Serial Number |
symbol | Pin function | Pinout
Serial Number |
symbol | Pin function |
1 | ML | Signal output terminal | 6 | Tse | PT1000 First End |
2 | MH | Current test terminal | 7 | C ext1 | Differential capacitance detection terminal 1 |
3 | V- | Negative power supply terminal | 8 | C ext2 | Differential capacitance detection terminal 2 |
4 | V+ | Positive power supply terminal | 9 | VO- | PT1000 second terminal |
5 | GND | ground | 10 | VO+ | Regulator positive output(+9V) |
