Low Cost Quartz Accelerometer

ER-QA-01C:
1. Bias Repeatability: 40μg;
2. Scale Factor Repeatability: 40ppm;
3. Low Cost & high Performance.

Download File

Share to:

Introduction

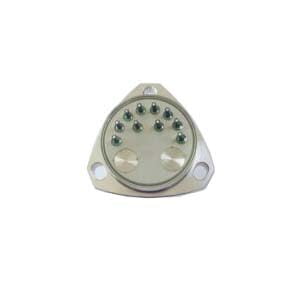

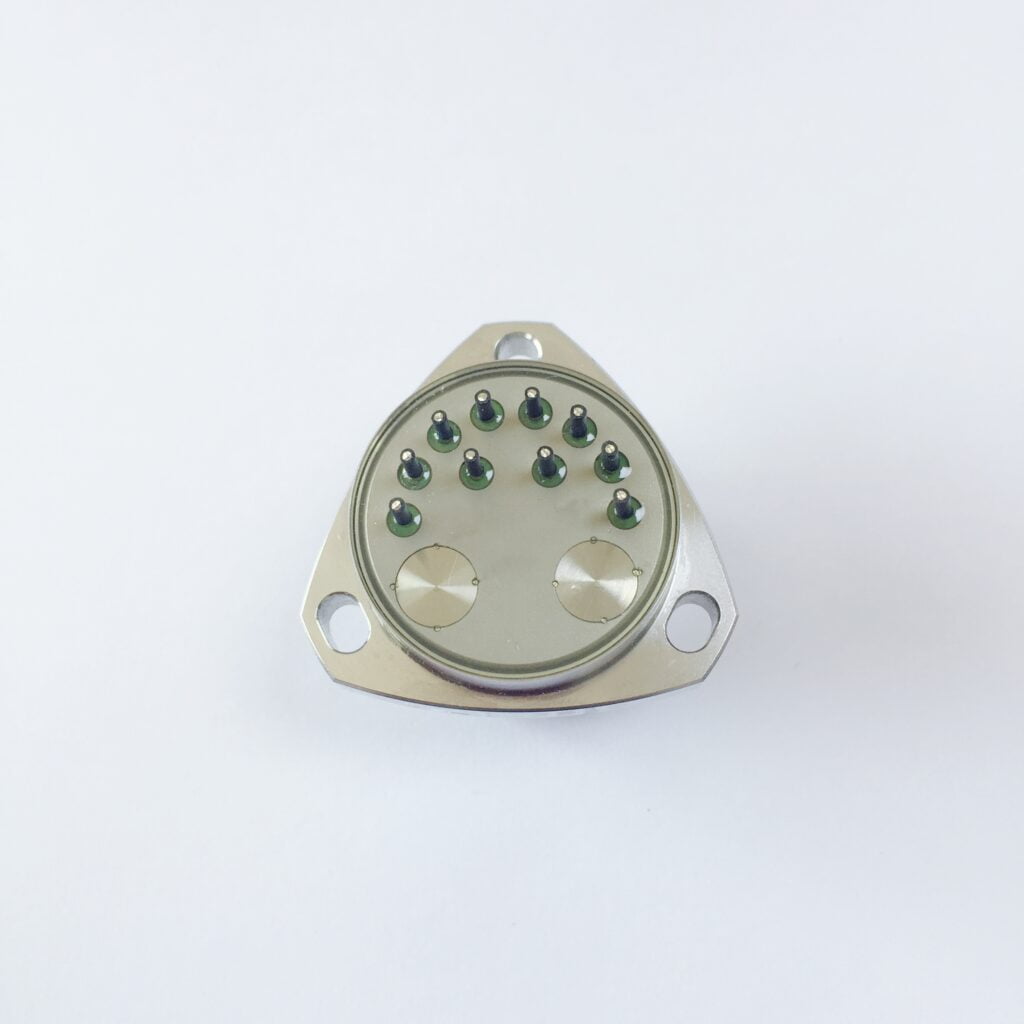

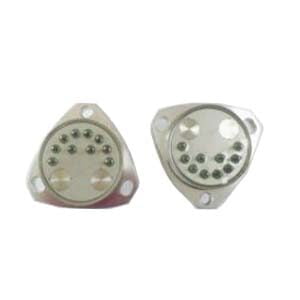

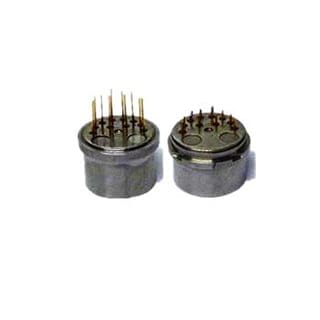

ER-QA-01C Low Cost Quartz Accelerometer

Low Cost Quartz Accelerometer can be widely used in inertial navigation system which has wide application in aerospace vehicles, inertial navigation system and control system of ships.

Composition and characteristics:

Quartz flexible pendulum accelerometer is composed of a meter head and a matching circuit. The head part of the watch is composed of inertia mass pendulum (with torque coil), torque tester, position detector, quartz pendulum plate, etc. Quartz flexible pendulum accelerometer is characterized by small size, high precision, fast start, impact resistance, and can meet the requirements of a variety of carriers and inertial systems.

Applications

Navigation system of tank

Military vehicle

Specifications

No.	Parameter	ER-QA-01C2	ER-QA-01C1	Unit
0	Threshold /Resolution	5	5	μg
1	Bias	≤4	≤4	mg
2	Scale Factor	1.1~1.5	1.1~1.5	mA/g
3	Second-order Non-linearity	≤30	≤50	μg/g 2
4	Bias Temp Coefficient	≤40	≤50	ug/℃
5	Scale Factor Temp Coefficient	≤60	≤80	ppm/℃
6	Bias month Repeatability	≤40	≤40	μg
7	Scale Factor Repeatability	≤40	≤40	ppm
8	Second-order Non-linearity Repeatability	≤20	≤20	μg/g 2
9	Natural Frequency	≤800	≤800	Hz
10	Acceleration Range	≥20	≥20	g
11	Vibration	8	8	grms
12	Shock	120g, 4.5ms, 1/2sin
13	Operating Temp	-45~+80	-45~+80	℃
14	Weight	≤80	≤80	g
15	Resolution	≤5×10-6	≤5×10-6	g
16	Operating Voltage	±12~±15	±12~±15	v
