Accelerometer For Oil And Gas

Features:
1. Tactical navigation grade performance;
2. Analog output;
3. Field-adjusting range;
4. Widely operating Temperature Range.

Send Inquiry

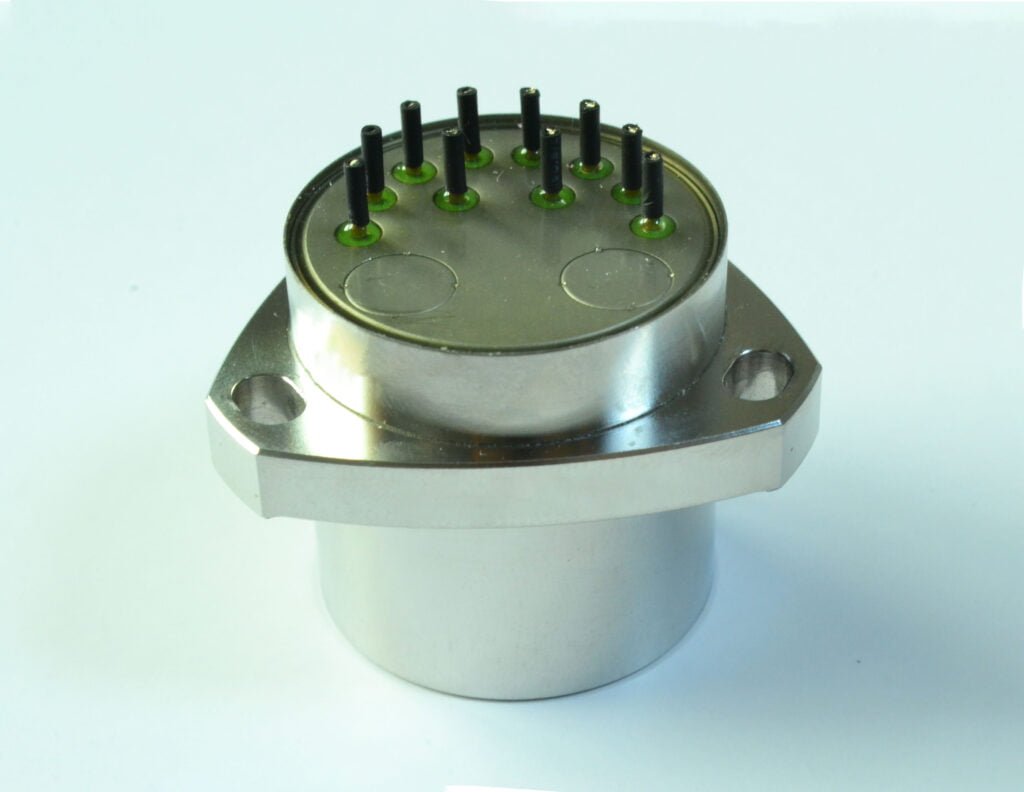

Accelerometer For Oil And Gas

ER-T4 Quartz accelerometer


ER-T4 mainly used for inclination angular test such as: bridge, dam, oil well, mining and so on, it also can be used for railway control system and ship’s stability system, which has high vibration resistant and strong shock resistant ,high and low temperature performance is superior . Especially ER-T4C still has excellent performance when it in 185℃high temperature environment.

Features:
1. Tactical navigation grade performance
2. Analog output
3. Field-adjusting range
4. Widely operating Temperature Range

Specification:

S/No

Parameters

ER-T4A

ER-T4B

ER-T4C

1

Input range (g)

±30

±30

±30

2

Bias (mg)

<20

<40

<40

2.1

One-month composite repeatability (µg)

<150

<250

<250

2.2

Temperature sensitivity (µg/℃)

<100

<150

<150

3

Scale factor (mA/g)

1.1~1.4

1.1~1.4

1.1~1.4

3.1

1 month composite ,repeatability  (ppm)

<150

<250

<250

3.2

Temperature sensitivity (ppm)

<200ppm

<200ppm

<200ppm

4

Axis misalignment (µrad)

<15000

<15000

<15000

5

Vibration rectification (µg/g2rms)

(50-500Hz)

<100

<100

<100

6

Intrinsic noise (µg-rms)

(0-10000Hz)

<3000

<3000

<3000

7

Operating temperature range (℃)

-55~96

-55~125

-55~180

8

Shock (g)

500  0.5ms

1000   0.5ms

1000   0.5ms

9

Vibration peak sine (g)

25@30-500Hz

10

Resolution /threshold (µg)

<10

<10

<10

11

Bandwidth (Hz)

>300

>300

>300

12

Quiescent current per supply (mA)

<20

<20

<20

13

Quiescent power (mW)@ ±15VDC

<480

<480

<480

14

Input voltage

±13 to ±18

±13 to ±18

±13 to ±18

15

Weight (grams)

55 Nominal , 65 max

16

Diameter below mounting surface

Ф1.0±0.005

(inches)

Ф25mm

Ф25mm

17

Height-bottom to mounting surface (inches)

0.617 Max

0.617 Max

0.617 Max

18

Case material

300 series stainless steel

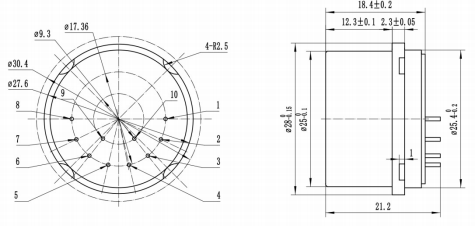

Install dimension :





ER-T5 Quartz accelerometer



ER-T5 for industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring.
The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurement. By use of customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

Features:
1.  Tactical navigation grade performance
2.  Analog output
3.  Field-adjusting range
4.  Size is smaller

Specifications:

S/No

Parameters

ER-T5-01

1

Input range (g)

±30

2

Bias (mg)

<20

3

One-month composite repeatability (µg)

<150

4

Temperature sensitivity (µg/℃)

<100

5

Scale factor (mA/g)

2.2~2.9

6

One-month composite repeatability (ppm)

<150

7

Temperature sensitivity (ppm)

<200ppm

8

Axis misalignment (µrad)

<15000

9

Vibration rectification (µg/g2rms)

<100(50-500Hz)

10

Intrinsic noise (µg-rms)

<3000(0-10000Hz)

11

Environment


12

Operating temperature range (℃)

-40~125

13

Shock (g)

100

14

Vibration peak sine (g)

25@30-500Hz

15

Resolution /threshold (µg)

<10

16

 Bandwidth (Hz)

>300

17

Electrical


18

Quiescent current per supply (mA)

<20

19

Quiescent power (mW)@ ±15VDC

<480

20

Input voltage

±13 to ±18

21

Physical


22

Weight (grams)

30 max

23

Diameter below mounting surface (mm)

Ф21.2

24

Height-bottom to mounting surface (mm)

15

25

Case material

300 series stainless steel

Install dimension:





ER-T6 Quartz accelerometer



ER-T6 is a small size accelerometer which has high reliability, mainly used in oil well logging . Output current and received force into a linear output, user can according to calculate to choose reasonable sampling resistance, to reaching the highest accuracy output . It can also be used for static testing and dynamically testing, it is a standard vibration sensor.

Features:
1.Excellent start repeatability
2.Good environmental performance
3.Analog output
4.Adjustable output range
5.Small dimensions

Specifications:

No

Parameters

ER-T6A

ER-T6B

1

Range

±20g

±20g

2

Threshold

30μg

30μg

3

Bias K0/K1

≤(±30mg)

≤(±30mg)

4

Scale factor K1

1.8~2.8mA/g

1.8~2.8mA/g

5

Second-order nonlinearity K2/K1

≤±50μg/g2

≤±50μg/g2

6

0g 4 hours short time stability

≤40μg

≤40μg

7

1g 4 hours short time stability

≤40ppm

≤40ppm

8

Bias composite repeatability σ K0 (1σ,one month)

≤250 μg

≤250 μg

9

Scale factor repeatability σ K1/k1 (1σ,one month)

≤250ppm

≤250ppm

10

Nonlinearity coefficient composite repeatability K2/K1(1σ,one month)

≤±50μg/g2

≤±50μg/g2

11

Bias Temp coefficient

≤±150μg/℃

≤±150μg/℃

12

Scale factor Temp coefficient

≤±200 ppm/℃

≤±200 ppm/℃

13

Noise(sample resistance 840Ω)

≤8.4mv

≤8.4mv

14

Natural frequency

350~800Hz

350~800Hz

15

Bandwidth

800~2500Hz

800~2500Hz

16

Vibration

25g(20-2000Hz)

25g(20-2000Hz)

17

Shock

500g,5ms,1/2sin

500g,5ms,1/2sin

18

Operating Temp range

-40~+180℃

-40~+125℃

19

Storage Temp range

-60~+200℃

-60~+150℃

20

Power

±12~±15

±12~±15

21

Current consumption

≤±20mA

≤±20mA

22

Size

Φ18.2×16mm

Φ18.2×16mm

23

Weight

≤25g

≤25g

Install dimension:



ER-II/B Quartz accelerometer


ER-II/B mainly used in MWD system and continuous north seeking systems, also it can be widely used in other harsh working conditions.

Features:

Anti-vibration, high accuracy


Specifications:

No

Parameter

Performance Indicators

Unit

02

01

1

Bias

≤10

≤10

mg

2

Scale Factor

2.5~3.5

2.5~3.5

mA/g

3

Bias Temp Coefficient

≤60

≤80

ug/

4



Scale Factor

Temp Coefficient

Room Temp~120

≤80

≤100

ppm/

120~150

≤500

≤500

ppm/

5

Bias Repeatability

≤100(3~7 days)

≤100(one day)

μg

6

Scale Factor Repeatability

≤100(3~7 days)

≤100(one day)

ppm

7

Acceleration Range

≥10

≥10

g

8

Vibration

20g(20~2000Hz)

20g(20~2000Hz)

g, Hz

9

Shock

1000g,0.5ms, 1/2sin

1000g,0.5ms,1/2sin

g, ms

10

Operating Temp

-45 ~+150

-45~+150

11

Weight

≤55

≤55

g

12

Operating Voltage

±7~ ± 12

±7~ ± 12

V

Install dimension:



ER-II/C Quartz accelerometer


ER-II/C mainly used in MWD system and continuous north seeking systems, also it can be widely used in other harsh working conditions.

Features:

Anti-vibration, High-accuracy


Specifications:

No.

Parameter

Performance Indicators

Unit

02

01

1

Bias

≤10

≤15

mg

2

Scale Factor

2.5~3.5

2.5~3.5

mA/g

3

Bias Temp Coefficient

≤60

≤100

ug/℃

4



Scale Factor

Temp Coefficient

Room Temp~120

≤120

≤150

ppm/

120~150

≤200

≤500

ppm/

5

Bias Repeatability

≤100

≤100

μg

6

Scale Factor Repeatability

≤100

≤100

ppm

7

Acceleration Range

≥10

≥10

g

8

Vibration

20g(20~2000)Hz

20g(20~2000)Hz

g, Hz

9

Shock

1000g, 0.5ms, 1/2sin

1000g, 0.5ms, 1/2sin

g, ms

10

Operating Temp

-45 ~+150

-45~+150

11

Weight

≤30

≤55

g

12

Operating Voltage

±7~ ± 12

±7~ ± 12

V

Install dimension:


ERICCO is expert in high quality accelerometer for oil and gas manufacturing and selling, who is one of the best manufacturers and suppliers of accelerometer for oil and gas with high precision. We have a professional factory at your service.
