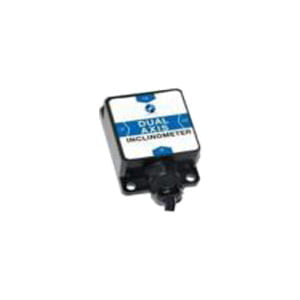

High Performance Voltage Type Double Axis Double Way Tilt Switch

ER-TS-14 Features:
1. Double axis tilt monitoring;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Wide temperature working -40~+85℃.

Share to:

Introduction

High Performance Voltage Type Double Axis Double Way Tilt Switch

Introduction
It is a high-performance voltage output type dual-axis single-channel digital DIP switch with a measuring range of 0~±90°. When the DIP value is greater than the preset DIP threshold, the switch signal (output voltage=power supply voltage) will be output to drive the solenoid valve. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set the alarm angle threshold by himself.
The tilt switch integrates an imported core unit and is used for horizontal security alarm and platform level monitoring related industries. The product adopts a transistor output circuit, which can drive a solenoid valve to close the hydraulic system, buzzer, alarm lamp, etc. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

Features
Double axis tilt monitoring
Full range accuracy 0.1°, resolution 0.01°
Alarm threshold can be set by the user
Input voltage DC 5V
Wide temperature working -40~+85℃
Range 0~±90° (optional)
High vibration resistance >3500 g
Industrial grade design
IP67 protection level
Switching value output (voltage), RS232 output meantime
Volume (55*37*24mm) (Customizable)

Applications
Railway gauge
Satellite solar antenna positioning
Tractor, deep tillage machinery
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
Hydraulic lifting platform
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams

Specifications

Spec.	Conditions	ER-TS-14	Unit
Measurement range	/	±90	°
Measuring axis	/	X, Y axis	/
Alarm axis	/	X, Y axis	/
Frequency response	DC response	100	Hz
Resolution	Bandwidth 5Hz	0.01	°
Accuracy	-40~85℃	0.1	°
Long-term stability	-40~85℃	0.1	°
Power on startup time	/	0.5	S
Output signal	Switching value (voltage) output, can be RS232, TTL optional at the same time
Mean time between failures	≥55000 hour/time
Shock resistance	3500g, 0.5ms, 3times/axis
Anti-vibration	10grms, 10~1000Hz
Insulation resistance	≥100MΩ
Waterproofing grade	IP67
Cable	Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielding cable 8*0.3mm2
Weight	75g (without packing)
