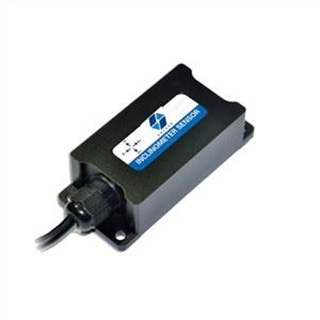

Current Type Dual-Axis Tilt Sensor

ER-TS-4258CU Features:
1. Tilt monitoring;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output 4~20mA, 0~20mA optional.

Current Type Dual-Axis Tilt Sensor

Get Price Now

    Current Type Dual-Axis Tilt Sensor

    Introduction

    ER-TS-4258CU Current Type Biaxial Tilt Meter is a small volume MEMS biaxial current output tilt sensor, output current 4~20mA, 0~20mA, 0~24mA optional. Due to the built-in micro-electromechanical production process inclination device, the product is small in size, low in power consumption, industrial-grade working temperature is -40~+85℃, and long-distance transmission can reach more than 2500 meters. The strong ability to resist external electromagnetic interference makes it suitable for long-term work in harsh industrial environments.

    The product adopts the principle of non-contact measurement, can output the current attitude inclination in real time, the accuracy can reach 0.1°. The product is simple to use and does not need to find the relative change of two surface installation, which is the ideal choice of industrial equipment and platform measurement.

    Features

    Biaxial tilt monitoring

    Full range accuracy 0.1°, resolution 0.01°

    Output 4~20mA, 0~20mA optional

    Wide voltage input DC 9~36V

    Wide temperature working -40~+85℃

    High vibration resistance & GT: 3500 g

    IP67 protection level

    RS232 can be output simultaneously

    Volume (90*40*27mm) (customizable)

    Specifications

    Current Type Dual-Axis Tilt Sensor


    Applications

    Railway gauge

    Satellite solar antenna positioning

    Tractor, deep tillage machinery

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    Hydraulic lifting platform

    Tilt based monitoring

    Various construction machinery angle control

    Inspection of bridges and dams

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Current Type Dual-Axis Tilt Sensor, pls contact us: info@ericcointernational.com
