High Precision CANopen Output Type Two Axis Tilt Sensor
ER-TS-4255CA Features:
1. Biaxial tilt monitoring;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output frequency 5~100HZ optional.
Digital Output Dual-Axis Tilt Sensor
ER-TS-5249DI Features:
1. Two axis tilt monitoring;
2. Output frequency 5~100HZ optional;
3. Full range accuracy 0.3°, resolution 0.05°.
High Precision FOG INS
ER-FINS-120 (0.02°):
1. Heading accuracy (1σ): ≤0.02°;
2. Attitude accuracy (1σ): ≤0.02°;
3. Positional accuracy (1σ): 1.0nm/2h.
CANopen Output Dual Axis Tilt Sensor
ER-TS-4255CA1 Features:
1. Dual axis inclinometer;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output frequency 5~100HZ optional.
Full System GNSS High Precision Board
ER-GB-02 Features:
1. 432 Super channels and dedicated fast capture engines;
2. Support BDS, GPS, GLONASS, Galileo and QZSS full system full frequency points;
3. Supports BD3 global signals.
MEMS Integrated INS
ER-MINS-5680 (0.5°) Features:
1. 0.1° (dynamic alignment);
2. 0.5° (low dynamic dual antenna assistance, 2m baseline);
3. Support fast and high precision orientation up to 0.1 °.
Digital Output Type Dual-Axis Tilt Sensor
ER-TS-4256DI Features:
1. Biaxial tilt monitoring;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output frequency 5~100HZ optional.
Small Size Digital Output Two Axis Tilt Sensor
ER-TS-4256DI1 Features:
1. Biaxial tilt monitoring;
2. Wide voltage input DC 9~36V;
3. Full range accuracy 0.1°, resolution 0.01°.
High Precision Fluxgate Directional Assembly
ER-OS-07 (±0.1°) Features:
1. Temperature: -40℃~150℃;
2. Accurate measurement under strong vibration environment with 16g peak value (20Hz~100Hz);
3. Shock resistance 1000g, vibration resistance 20grms;
4. Digital data transmission;
5. With minimum size of Φ31mm×384mm (customized to different needs).
Dynamically Tuned Inertial Navigation System
ER-DINS-1 (0.4~0.5°) Features:
1. Strapdown inertial navigation system determination of aircraft position, heading, altitude;
2. System with emergency rapid alignment, normal alignment, navigation, correction, parameter calibration, testing, parameter binding, non volatile storage.
FOG AHRS
ER-AHRS-10 (0.05°) Features:
1. Use integrated design and integration technology;
2. Anti vibration, shock resistance, high precision, long storage maintenance;
3. Be widely used in aviation, aerospace, weapons, tactical missile ships and other fields.
Current Type Dual-Axis Tilt Sensor
ER-TS-4258CU Features:
1. Tilt monitoring;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output 4~20mA, 0~20mA optional.
Voltage Type Two Axis Tilt Sensor
ER-TS-5240VO Features:
1. Two axis tilt monitoring;
2. Output 0~5V, 0.5V~4.5V, 0~10V optional;
3. Full range accuracy 0.3°, resolution 0.05°.
High Temperature Fluxgate Directional Assembly
ER-OS-07H (±0.1°) Features:
1. Temperature: 0~175℃;
2. Accurate measurement under strong vibration environment with 16g peak value (20Hz~100Hz);
3. Shock resistance 1000g, vibration resistance 20grms;
4. Digital data transmission;
5. With minimum size of Φ31mm×384mm (customized to different needs).
Rate Gyro AHRS
ER-AHRS-3 Features:
1. Composed of single degree of freedom FOG gyro and control box;
2. Used in big size ship for long voyage in bumping waters.
Three Axis Rate Postion Turntable
ER-PRT-03 Features:
1. Table or load mounting space can be customized;
2. High-frequency and fiber optical ring track are optional;
3. Maximum carrying capacity: 40-80kg
.

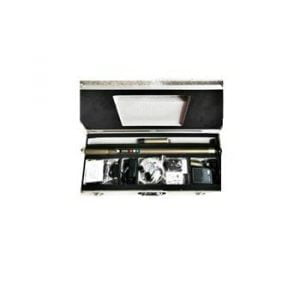

Low Cost Singleshot & MultiShot Inclinometer
ER-SMLT-01 (0~180°±0.2°)
1. Inclination: ±0.2°;
2. Azimuth: ±1.0°;
3. Tool face: ±0.5°.
High Precision Land Positioning and Orientation System
ER-POS-1 (0.02~0.1°) Features:
1. High precision FOG & Quartz acceleroemter;
2. Dynamic measurement to get heading, roll, pitch angle;
3. Truth north finding;
4. Widely used in missile launch, weapon targeting, radar, antennas, other dynamic control objects.
Dynamic Fluxgate Directional Assembly
ER-DOS-03 (0~180°±0.1°) Features:
1. High temperature resistant;
2. Resistance to vibration and shock;
3. Dynamic measurement under rotation;
4. Low power consumption.
CANopen Output Two Axis Tilt Sensor
ER-TS-5245CA Features:
1. Two axis tilt monitoring;
2. Full range accuracy 0.3°, resolution 0.05°;
3. Output frequency 5~100HZ (optional).
Digital Output 2 Axis Tilt Sensor
ER-TS-5246DI Features:
1. Two axis tilt monitoring;
2. Output frequency 5~100HZ optional;
3. Full range accuracy 0.3°, resolution 0.05°.
Quick Gyro Theodolite
ER-GT-03 (≤30"):
1. Orienteering accuracy ≤30" (1σ);
2. Volume (no theodolite) ≤Φ200mm×h490mm.
Oil and Gas Quartz Pressure Sensor
ER-QPS-19 Features:
1. High temperature and high pressure type quartz pressure sensor;
2. High reliability and high precision characteristics.

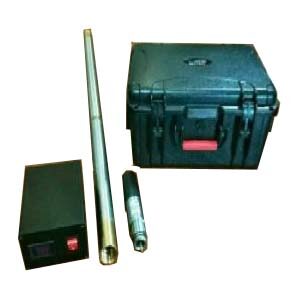

FOG Continuous Gyro Tools
ER-Gyro-04 (0°~90° ±0.1°) Features:
1. Inclination: ±0.1°; azimuth: ±1.0°; tool face angle: ±0.5°;
2. Automatic north seeking without ground calibration;
3. Continuous measurement; wired and storage mode;
4. High reliability, stability and precision, easy operation.
