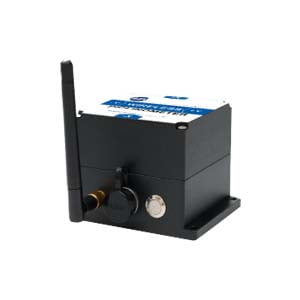

ER-TS-42500 Features:
1. Accuracy: 0.1°, resolution: 0.01°;
2. Wide temperature work: -40~+ 85℃;
3. Biaxial monitoring (uniaxial optional).

Standard Wireless Transmission Tilt Sensor

Standard Wireless Transmission Tilt Sensor

Get Price Now

    Share to:

    Standard Wireless Transmission Tilt Sensor

    Introduction
    The ER-TS-42500 protocol is an ultra-low power, small volume, and high performance wireless tilt sensor for industrial applications where users have no power supply or real-time dynamic measurement of object attitude Angle. Based on the Internet of Things technology Bluetooth, Zigbee (optional) wireless transmission technology, all internal circuits are optimized design, good long-term stability and small zero drift, can automatically enter low-power sleep mode, from the use of the environment to get rid of dependence; Industrial equipment wireless transmission distance: Bluetooth <50 meters, Zigbee<1600 meters.
    Compact product structure, precision design, for temperature and linearity compensation again, integrated with short circuit, instant high pressure, polarity, surge and other comprehensive protection functions, Simple and easy to use, and Wireless digital signal transmission mode eliminates the tedious wiring brought by long cable transmission, noise interference; Industrial-grade design has extremely high measurement accuracy and anti-interference ability, wireless sensor nodes can form huge wireless networks, Supporting thousands of monitoring points for simultaneous inclination monitoring, supporting the professional computer software, no need for field survey, real-time data measurement and record the state of the measured object; Suitable for the industrial site, old dilapidated houses, ancient buildings, civil engineering, various tower tilt deformation remote real-time monitoring and analysis of the needs of the safety monitoring system.

    Product property
    Biaxial monitoring (uniaxial optional)
    Measurement Range: Double axis ±90°, single axis ±180° (360° optional)
    Accuracy: 0.1°, resolution: 0.01°
    Volume (94*74*64mm) (customizable)
    Ultra-low power consumption
    Built-in rechargeable lithium battery power supply
    Wide temperature work:-40~+85℃
    IP67, protection level

    Product application
    Billboard monitoring
    Bridge construction
    PTZ levelling
    Ship attitude measurement
    High speed rail roadbed tunnel monitoring
    Satellite solar antenna positioning
    Medical equipment
    Various engineering machinery angle control

    Product performance indicators

    ParametersConditionER-TS-42500Unit
    Measuring range/±90°
    Measuring axis/X,Y axis/
    Zero point temperature drift-40~85°±0.01°/℃
    Sensitivity temperature coefficient-40~85°≤150ppm/℃
    Frequency responseDC response100Hz
    Resolution/0.01°
    Accuracy-40~85℃0.1°
    Long-term stability-40~85℃<0.12°
    Power-on startup time/0.20.20.20.2s
    Response time/0.050.050.050.05s
    Wireless frequency2460 MHZ (default), 2405-2480 adjustable
    Transmission distance1.6KM
    Built-in battery capacity6000mAh
    Average operation time≥55,000 hrs / time
    Shock resistance3500g,0.5ms, 3 times / axis
    Anti-vibration10grms、10~1000Hz
    Insulation resistance≥100MΩ
    Waterproof ratingIP67
    Weight450g (excluding the package box)
    Electrical indicators
    ParametersConditionMin.Typical valueMax.Unit
    Power supply voltageStandard4.755.5V

    Current consumption

    Working mode/30/mA
    Sleep mode/5/
    Built-in battery capacity//5000/mAh
    Working temperature/-40/+85
    Storage temperature/-55/+125
    Mechanical properties
    ConnectorWaterproof Aviation Socket
    Protection levelIP67
    Shell materialAluminum alloy grinding sand oxidation
    InstallationFour M4 screws
