Best AHRS for UAV: How to Choose the Right Attitude and Heading Reference System for Drones

Introduction

In autonomous unmanned aerial vehicle (UAV) navigation, positional accuracy alone is insufficient. Whether an industrial drone is conducting high-precision LiDAR mapping, inspecting high-voltage power lines in severe electromagnetic environments, or executing complex Beyond Visual Line of Sight (BVLOS) maneuvers, positional data is only as good as the aircraft's spatial awareness.

This is where the Attitude and Heading Reference System (AHRS) serves as the central neural hub of the UAV flight control system.

While basic Inertial Measurement Units (IMUs) provide raw angular rate and acceleration data, a high-performance UAV Attitude Sensor continuously computes roll, pitch, and true heading by fusing raw sensor data with advanced estimation algorithms (such as the Extended Kalman Filter).

This guide delivers an end-to-end technical breakdown of drone attitude sensing from mathematical foundations and sensor noise modeling to real-world integration challenges, multi-sensor calibration, and commercial selection.

Core Principles: How an AHRS Works

To understand the operational mechanics of an AHRS for UAV platforms, it is critical to distinguish between an IMU, an AHRS, and a full Inertial Navigation System (INS).

Sensor Triad and Kinematic Equations

An AHRS consists of a 9-axis sensor triad:

• 3-axis MEMS Gyroscope: Measures angular velocity (ω_x, ω_y, ω_z).

• 3-axis MEMS Accelerometer: Measures specific force/linear acceleration (a_x, a_y, a_z).

• 3-axis Magnetometer: Measures local geomagnetic field vectors (m_x, m_y, m_z).

To determine aircraft orientation, the angular rates from the gyroscope are integrated over time. The dynamic relation between Euler angle rates and body-frame angular velocities (p, q, r) is expressed as:

Because direct Euler integration suffers from mathematical singularities (specifically Gimbal Lock at pitch angles θ = ±90°), modern industrial flight controllers represent attitude using unit quaternions:

The quaternion derivative equation used for real-time integration is:

The Cumulative Drift Problem

If gyroscopes were perfectly stable, numerical integration of q would yield exact attitude over time. However, real-world MEMS gyroscopes exhibit zero-bias instability, thermal drift, and random walk noise.

Integrating uncalibrated gyroscope bias causes the calculated orientation to drift indefinitely. To bound this error:

• Accelerometers reference Earth's gravity vector (g ≈ 0.98m/s² ) to constrain Roll and Pitch drift.

• Magnetometers (or dual-antenna GNSS arrays) reference Earth's magnetic north field to constrain Yaw/Heading drift.

Sensor Fusion Algorithms: EKF vs. Complementary/Mahony Filters

Fusing high-rate dynamic gyroscopic data with low-rate, absolute references (accelerometer and magnetometer) requires mathematical filtering. The two dominant paradigms in commercial and tactical UAVs are:

1. Extended Kalman Filter (EKF):

   • Mechanism: Linearizes nonlinear flight kinematics around the current state estimate. It continuously models noise covariances (Q and R) to dynamically weight sensor reliability.

   • Strengths: Handles linear acceleration and transient magnetic interference; updates sensor bias real-time (b_g, b_a).

   • Applications: Fixed-wing BVLOS, industrial VTOLs, defense-grade navigation.

2. Complementary & Mahony Explicit Complementary Filters (ECF):

   • Mechanism: Employs high-pass filtering on gyroscopes and low-pass filtering on accelerometers/magnetometers, using a proportional-integral (PI) feedback loop to drive estimation error toward zero.

   • Strengths: Extremely low computational overhead, zero matrix inversion requirement, rapid execution on lower-power MCUs (ARM Cortex-M4/M7).

   • Applications: Lightweight micro-UAVs, high-speed racing drones, budget-constrained flight controllers.

Key Error Sources and Mitigation in UAV Environments

Deploying an Industrial AHRS onboard a multirotor or fixed-wing aircraft presents severe noise and environmental challenges. Understanding these physics-based error mechanisms is critical for reliable systemic design.

1. Vibration and Accelerometer Saturation

High-frequency mechanical vibrations from brushless DC motors and unbalance in carbon fiber propellers propagate into the airframe within the 100 Hz–1000 Hz spectrum.

• Mechanism: High-amplitude vibration causes MEMS accelerometer proof-mass structures to hit internal physical stops (rectification error), shifting the mean DC acceleration output.

• Consequence: The EKF misinterprets structural vibration as continuous linear acceleration, skewing pitch and roll estimation by up to 15°–20°.

2. High-Dynamic Maneuvers & Non-Gravitational Acceleration

The accelerometer-based roll/pitch correction assumes the only measured continuous acceleration vector is Earth's gravity (g).

• Mechanism: During centripetal turns, rapid acceleration, or sudden braking, the measured acceleration is a_meas = g + a_kinematic.

• Consequence: Simple complementary filters treat centrifugal acceleration as gravity, artificially leaning the calculated horizon away from true level. Modern industrial AHRS engines bypass this issue using kinematic motion models or external velocity feedback from GNSS/airspeed sensors to subtract a_kinematic before the measurement update phase.

3. Magnetic Distortions (Hard Iron vs. Soft Iron)

Magnetometers are sensitive to distortion from local structural and electrical materials:

• Hard Iron Interference: Caused by permanently magnetized components onboard (e.g., steel fasteners, battery nickel strips, motor magnets). It creates a constant vector bias (V_hard_iron) that shifts the center of the magnetic field sphere away from the coordinate origin.

• Soft Iron Interference: Caused by magnetically permeable materials (e.g., structural iron, structural carbon fiber weaves, adjacent power buses) that alter and deform the shape of Earth's magnetic field into an ellipsoid (A_soft_iron).

• Dynamic EMI: High-current power distribution boards (PDBs) and ESC supply wires generate time-varying magnetic fields (I ∝ B) proportional to throttle percentage, rendering static magnetometer offsets useless during climb or acceleration.

4. Thermal Drift

MEMS silicon structures deform slightly over temperature gradients (-40°C to +85°C), inducing thermal shifts in bias offset, scale factor, and axis alignment. Without hardware-level, active thermal compensation, cold-weather takeoffs or internal heat generation from onboard compute modules can lead to severe attitude degradation during flight.

3. Engineering Hardware Integration & Calibration Guide

To achieve stable, tactical-grade flight performance from an AHRS for UAV integration, hardware engineers must follow strict mounting, mechanical isolation, and calibration protocols.

Physical Mounting and Vibration Isolation

1. Center of Gravity (CoG) Placement: Position the AHRS as close as possible to the aircraft’s physical CoG. Off-center mounting induces lever-arm acceleration forces (a_lever = α*r+ω) during rapid yawing or pitching, requiring manual lever-arm vector compensation in software.

2. Resonant Frequency Decoupling: Mount the AHRS on a tuned dampening mass plate (typically a weighted PCB or brass plate suspended by silicone/rubber dampening grommets). Ensure the natural mechanical frequency of the isolator (f_n) satisfies:

Avoid overly soft foam dampers that induce low-frequency frame-sway resonances, which adversely affect EKF attitude tracking during rapid stick inputs.

Calibration Procedures

Step 1: 6-Position Accelerometer Calibration

Mount the drone or AHRS package on a precision level surface. Rotate the unit through six orthogonal orientation positions (X-Up, X-Down, Y-Up, Y-Down, Z-Up, Z-Down), resting statically for 10 seconds at each orientation. This isolates individual axis scale factors, zero-g biases, and cross-axis misalignments against Earth's known 1g gravitational constant.

Step 2: 3D Spherical/Ellipsoid Magnetometer Calibration

Execute a full three-dimensional rotational calibration away from reinforced concrete structures, electrical power lines, and ferrous metals:

1. Rotate the aircraft fully around its X, Y, and Z axes until the magnetometer sampling software maps a dense 3D point cloud of magnetic intensity.

2. Fit the raw point-cloud data to an ellipsoid equation using least-squares estimation:

3. Extract the scale matrix (M) and vector offset (x_0) to map raw elliptical distortions back into a uniform sphere.

Step 3: Temperature Compensation Profile

Place the AHRS inside a thermal chamber. Ramp the internal temperature across the full operational range (e.g., -40°C to +85°C) while the sensor remains perfectly stationary on an isolated block. Compute high-order polynomial correction coefficients for each sensor axis:

Save these coefficients to the onboard non-volatile memory (EEPROM/Flash) to ensure real-time bias correction during operational thermal transients.

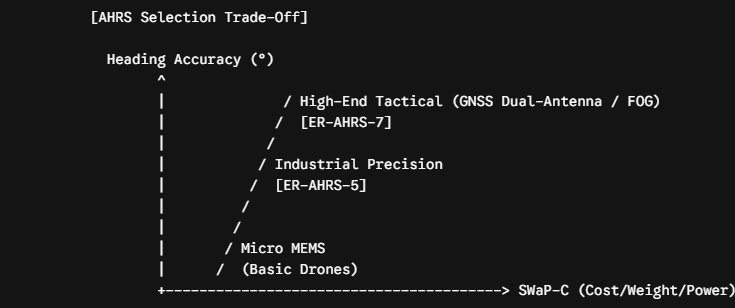

Selecting the Best AHRS for Industrial & Tactical Drones

Selecting an attitude sensor requires balancing performance metrics, weight, power constraints, and operational environment conditions.

Key Performance Metrics to Evaluate

• Gyro Bias In-Run Stability (°/hr): The fundamental indicator of gyroscope quality. Lower values signify less attitude drift during prolonged loss of external reference signals.

• Angle Random Walk (ARW, °/√hr): Quantifies white noise levels injected into the angular integration pipeline over time.

• Heading Accuracy (Deg): Differentiates basic magnetometric units (1.0°–2.0°) from dual-antenna GNSS-assisted tactical systems (0.1°–0.2°).

• Dynamic Roll/Pitch Accuracy (Deg): The operational accuracy expected while the platform undergoes intense vibration, rapid bank turns, and continuous linear accelerations.

• Update Rate (Hz) & Latency (ms): Flight controllers handling high-speed autonomous maneuvers require low-latency output updates (≥200Hz} to 1000Hz, $< 2ms delay).

Technical Comparison Matrix

Specification / Parameter	Consumer Micro-AHRS	Mid-Tier Industrial AHRS	Tactical Grade AHRS	ER-AHRS-5 (ERICCO)	ER-AHRS-7 (ERICCO)
Gyro Bias Stability	>10∘/hr	2∘−5∘/hr	<0.5∘/hr	1∘−2∘/hr	0.1∘−0.3∘/hr
Angle Random Walk (ARW)	>0.5∘/hr​	0.1∘−0.2∘/hr​	<0.02∘/hr​	0.03∘/hr​	0.008∘/hr​
Dynamic Roll/Pitch Accuracy	1.5∘−3.0∘	0.2∘−0.5∘	<0.05∘	0.1∘−0.2∘	0.03∘−0.05∘
Heading Accuracy (Mag Ref)	2.0∘−5.0∘	0.8∘−1.5∘	0.3∘−0.5∘	0.5∘−0.8∘	0.1∘−0.3∘
Thermal Compensation Range	Uncompensated / 0−50∘C	−20∘C to +70∘C	−40∘C to +85∘C	−40∘C to +85∘C	−40∘C to +85∘C
Shock & Vibration Tolerance	Low (<500g)	Moderate (1000g)	High (2000g+)	2000g Shock / 6g RMS	2500g Shock / 8g RMS
Primary Target Applications	DIY / Toys / Mini Quad	Mapping / Inspection	Defense / BVLOS / Heavy Payload	Industrial Multirotors / VTOLs	Tactical BVLOS / High-Precision Survey

Focus Models: ER-AHRS-5 vs. ER-AHRS-7

When selecting the Best AHRS for Drone missions across demanding commercial scenarios, the ER-AHRS-5 and ER-AHRS-7 units represent highly optimized, ruggedized solutions for industrial flight requirements.

1. ER-AHRS-5: Ultra-Compact Industrial Performance

• Key Strengths: Designed explicitly for platforms where Size, Weight, Power, and Cost (SWaP-C) are critical constraints without compromising pitch and roll dynamic stability.

• Target Integration: Commercial delivery quadcopters, infrastructure inspection VTOLs, medium-scale mapping platforms.

• Core Capabilities: Features advanced MEMS sensor tria with integrated hardware temperature compensation, outputting stable real-time attitude vectors over RS-422 / UART at up to 500Hz.

2. ER-AHRS-7: Tactical High-Precision Attitude & Heading System

• Key Strengths: Integrates tactical-grade, low-noise MEMS gyroscopes with exceptionally low angle random walk and high vibration rejection algorithms.

• Target Integration: Long-range BVLOS drones, high-budget military/defense UAV platforms, airborne LiDAR mapping units requiring high-precision payload stabilization.

• Core Capabilities: Maintains strict heading stability under high dynamic maneuvers and magnetic disturbances. Seamlessly interfaces with downstream flight computers running complex navigation software stacks.

FAQ

Q: What is the difference between an IMU, an AHRS, and an INS?

A: An IMU only outputs raw physical readings: 3-axis angular rates () and 3-axis accelerations ($a$). An AHRS takes IMU data, adds magnetometer or heading references, and runs an internal sensor fusion filter (e.g., EKF) to output orientation angles: Roll, Pitch, and Heading. An INS combines an AHRS with external positioning sensors (like GNSS and barometers) to provide a complete navigation solution: attitude, 3D velocity, and absolute geographic position (Latitude, Longitude, Altitude).

Q: Why does magnetometer heading drift near high-voltage power lines or metal structures?

A: High-voltage power lines carry massive currents that generate strong, dynamic electromagnetic fields according to Ampere's Law ($\mathbf{B} \propto I/r$). Metal structures create localized soft-iron magnetic distortions. Both effects disrupt Earth's static magnetic field vector, causing the AHRS magnetometer estimation engine to compute false heading offsets.

To mitigate this, high-reliability drones use dual-antenna GNSS heading arrays or automatically inhibit magnetic fusion updates when anomalous magnetic field magnitudes are detected by onboard diagnostics.

Q: How do I prevent motor vibration from degrading my drone attitude sensor performance?

1. Apply mechanical isolation using an appropriately damped silicone/rubber mounting plate tuned away from motor/propeller fundamental frequencies.

2. Ensure high-frequency digital Low-Pass Filters (LPF) or notch filters (such as Butterworth or FIR filters) are enabled on the raw accelerometer data pipeline within the AHRS software.

3. Use pre-balanced propellers and dynamically balanced motors to reduce vibration amplitudes at the mechanical source.

Q: Can an AHRS provide accurate orientation without GNSS signals?

A: Yes. An AHRS does not require GNSS signals to compute roll, pitch, and heading. Roll and pitch are stabilized via Earth's gravitational vector ($\mathbf{g}$), while heading is anchored using Earth's magnetic field vector ($\mathbf{B}$). However, during aggressive velocity shifts or extended dynamic maneuvers indoors, advanced AHRS algorithms utilize internal kinematic motion models to prevent linear acceleration from corrupting static gravity updates.

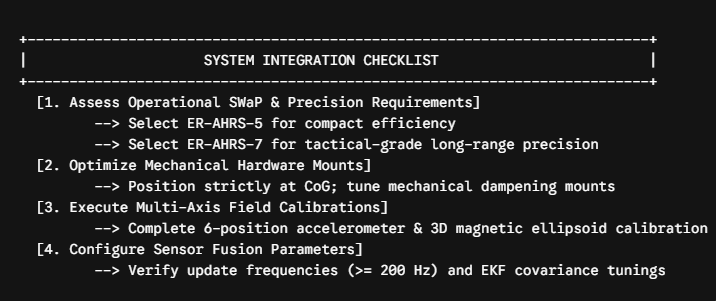

Conclusion & Integration Roadmap

Achieving precise, resilient flight stabilization across complex industrial drone operations requires selecting the appropriate attitude sensing architecture and adhering to strict mechanical and mathematical integration practices:

Whether you are designing a high-efficiency inspection quadcopter or a long-range BVLOS tactical payload aircraft, relying on tactical-grade sensors like the ER-AHRS-5 and ER-AHRS-7 ensures your platform maintains precise orientation under severe operational conditions.
