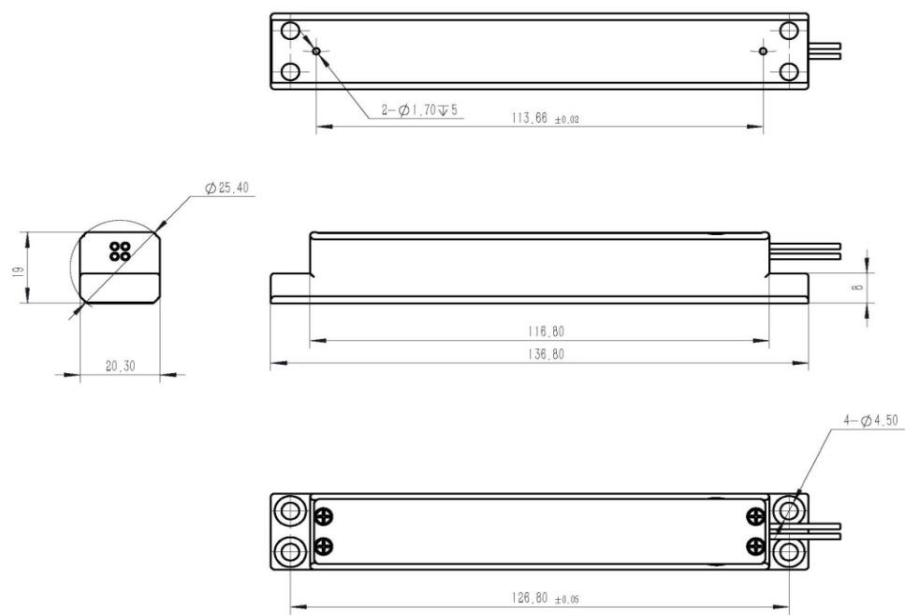

ER-OS-05 Economical Fluxgate Directional Sensor

ER-OS-05 (0°~125°±0.5°) Features:
1. Small size;
2. High precision;
3. Anti-vibration;
4. Anti-impact.

Share to:

Introduction

ER-OS-05 economical fluxgate directional sensor includes a 3-axis flux-gate sensor and a 3-axis MEMS acceleration sensor. The sensor is equipped with built-in temperature compensation, and the inclination accuracy is ±0.1° and azimuth accuracy is ±0.5° within the temperature range of 0~125°c.

In addition, the sensor can also measure the total acceleration, total magnetic field strength, magnetic tool surface angle, geomagnetic inclination angle, temperature, rotation speed and other parameters. ER-OS-05 has the characteristics of small size, high precision, anti-vibration and anti-impact. ER-OS-05 can correct the angle deviation caused by mechanical installation through the supporting upper computer software.

Features

Small size

High precision

Anti-vibration

Anti-impact

Specifications

Inclination Range	0°~180°
Inclination Accuracy	±0.1°
Tool Face Range	0°~360°
Tool Face Accuracy	±0.2°
Azimuth Range	0°~360°
Azimuth	±0.5°@90°
	±1°@10°
	±2°@5°
Speed Range	0~400RPM
Speed Accuracy	±4%
Operation Temp	0℃~125℃
Storage Temp	-40℃~130℃
Input voltage scope	+4.9~+12V
Input current	≤50mA (Vin=+5V)
Baud rate	9600 (default) maximum to 115200
Communication Interface	TTL/RS232
Shock	2000G, 0.5MS
Vibration	30g
