Introduction
It is a high precision full attitude three-dimensional electronic compass, can integrates digital signal RS232 output with analog 4-20mA,0-5V output and IP67 waterproof. It adopts hard iron and soft iron calibration algorithms to provide high precision course information in 360° roll and +/-90° full inclination range. ER-EC-360V survey for oil field application special optimization, to make it very suitable for inclinometer system, ER-EC-360V can manually or automatically output Angle, azimuth Angle and tool face Angle information, and can output the current size of the magnetic field component, users only need to connect the product data transmission circuit, a high precision inclinometer can be formed.
Product output of accuracy attitude can be used in a full attitude rotation system.This product has hard magnetic, soft magnetic and tilt compensation, the compass output after calibration of high precision measurement value.The three-axis fluxgate integrated with the patented technology calculates the heading in real time through the CPU, and uses the three-axis accelerometer to make the heading compensation for the inclination Angle, so that it can provide accurate heading data even in the extremely harsh environment.With small size and low power consumption, it has been widely used in many fields such as petroleum logging, antenna pointing, vehicle navigation and attitude system.
Features
Measurement range 0~360°
Heading accuracy 0.3~0.5°, resolution 0.1°
Industrial grade design
Wide voltage working DC 9~36V
Wide temperature working -40~+85℃
With hard magnetic, soft magnetic and tilt compensation
The sampling rate 100HZ
Working current: 40mA
IP65 protection level
Output 0~5V, 4~20mA (optional)
Small volume (96*19*8mm) (customizable)
Application
Individual combat equipment
Satellite solar antenna positioning
AGV car
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
UAV positioning and navigation
Tilt based monitoring
Various construction machinery Angle control
Bridge dam, monitoring
Specifications
| Compass heading parameter | Heading accuracy | 0.3~0.5°(RMS pitching<85°） |
| Resolution | 0.1° | |
| Repeatability | 0.05° | |
| Compass tilt parameter | Pitch accuracy | 0.1° |
| Roll accuracy | 0.1°（pitching<65°） | |
| 0.2°（pitching<80°） | ||
| 0.5°（pitching<86°） | ||
| Dip resolution | 0.01° | |
| Tilting range | Pitch ±90°, Roll360° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Tilt calibration | Yes | |
| Physical property | Size | L96 x W19x H8 (mm) |
| Weight | 10g | |
| RS232/RS485 interface connector | 5 pin connector | |
| Interfaces characteristics | Startup delay | <50ms |
| Maximum sampling rate | 50 times per second | |
| RS-232
communication rate |
2400~19200 baud rate | |
| RS - 485 communication | Optional | |
| TTL communication | Optional | |
| Output format |
Hexadecimal high performance protocol |
|
| Analog output | 4~20mA, 0~5V（Provide the heading angle directions only) | |
| Power supply | Support the voltage | DC+9~36V |
| Current (maximum) | 40mA | |
| Working mode | 30mA | |
| Environment | Storage temperature | -40℃--+125℃ |
| Working temperature | -40℃--+85℃ | |
| Vibration resistance | 3000g |

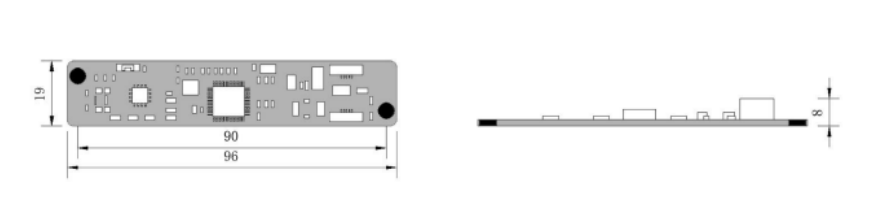

Dimension
