Voltage Type Double Axis Single Way Tilt Switch

Voltage Type Double Axis Single Way Tilt Switch

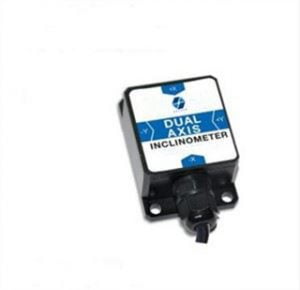

ER-TS-13 Features:
1. Double axis tilt monitoring;
2. Input voltage DC 5V;
3. Full range accuracy 0.1°, resolution 0.01°.

Voltage Type Double Axis Single Way Tilt Switch

Voltage Type Double Axis Single Way Tilt Switch

Get Price Now

    Share to:

    Voltage Type Double Axis Single Way Tilt Switch


    It is a high-performance voltage output type dual-axis single-channel digital DIP switch with a measuring range of 0~±90°. When the DIP value is greater than the preset DIP threshold, the switch signal (output voltage=power supply voltage) will be output to drive the solenoid valve. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set the alarm angle threshold by himself.

    The tilt switch integrates an imported core unit and is used for horizontal security alarm and platform level monitoring related industries. The product adopts a transistor output circuit, which can drive a solenoid valve to close the hydraulic system, buzzer, alarm lamp, etc. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.


    Double axis tilt monitoring

    Full range accuracy 0.1°, resolution 0.01°

    Alarm threshold can be set by the user

    Input voltage DC 5V

    Wide temperature working -40~+85℃

    Range 0~±90°(optional)

    High vibration resistance >3500 g

    Industrial grade design

    IP67 protection level

    Switching value output (voltage), RS232 output meantime

    Volume (55*37*24mm) (Customizable)


    Railway gauge

    Satellite solar antenna positioning

    Tractor, deep tillage machinery

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    Hydraulic lifting platform

    Tilt based monitoring

    Various construction machinery angle control

    Inspection of bridges and dams


    Spec. Conditions ER-TS-13 Unit
    Measurement range / ±90 °
    Measuring axis / X, Y axis /
    Alarm axis / X, Y axis /
    Frequency response DC response 100 Hz
    Resolution Bandwidth 5Hz 0.01 °
    Accuracy -40~85℃ 0.1 °
    Long-term stability -40~85℃ 0.1 °
    Power on startup time / 0.2 S
    Output signal Switching value (voltage) output, can be RS232, TTL optional at the same time
    Mean time between failures ≥55000 hour/time
    Shock resistance 3500g, 0.5ms, 3times/axis
    Anti-vibration 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproofing grade IP67
    Cable Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielding cable 6*0.3mm2
    Weight 75g (without packing)
