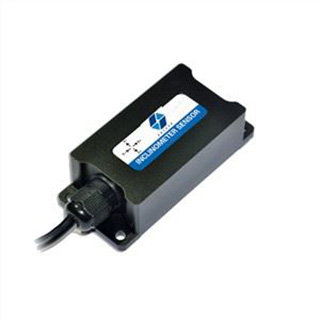

ER-TS-04 Features:
1. Range 0 ~ ±90°(optional);
2. Full range accuracy 0.1°, resolution 0.01°;
3. Alarm threshold can be set by the users.

Relay Type Two-Axis Single-Way Tilt Switch

Relay Type Two-Axis Single-Way Tilt Switch

Get Price Now

    Relay Type Two-Axis Single-Way Tilt Switch

    Introduction

    ER-TS-04 is a high-performance relay output type single-axis dual dip switch, its product measuring range is 0~±90°, and a set of relay output circuits are built-in. When the inclination value is greater than the preset value, the alarm threshold will output the error contact relay signal (driving current 1A), and open the solenoid valve for corresponding hydraulic leg leveling. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.

    The product integrates an imported core unit, and uses a transistor output circuit to drive a solenoid valve to close the hydraulic system, buzzer, and warning light. The product is used in industries related to horizontal security alarm and platform level monitoring. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

    Features

    Biaxial tilt monitoring

    Full range accuracy 0.1°, resolution 0.01°

    Alarm threshold can be set by the user

    Wide voltage input DC 9 ~ 36V

    Wide temperature working -40 ~ +85℃

    Range 0 ~ ±90°(optional)

    High vibration resistance & GT;3500 g

    Industrial grade design

    IP67 protection level

    Relay output (normally on, normally closed) and RS232 output at the same time

    Volume (90*40*27mm) (Customizable)

    Applications

    Railway gauge and gauge gauge

    Satellite solar antenna positioning

    Tractor, deep tillage machinery

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    Hydraulic lifting platform

    Tilt based monitoring

    Various construction machinery angle control

    Inspection of bridges and dams

    Specifications

    Parameters Conditions ER-TS-04 Unit
    Measuring range / ±180 °
    Measurement of shaft / X,Y axis /
    Alarm shaft / X,Y axis /
    Frequency response DC response 100 Hz
    The resolution of the Bandwidth 5Hz 0.01 °
    Precision -40~85℃ 0.1 °
    Long-term stability -40~85℃ 0.1 °
    Power on start time / 0.5 S
    The output signal Switching volume (voltage) output, RS232, TTL optional
    Average working time ≥ 55,000 hours/time
    Impact resistant 3500 g, 0.5 ms, 3 times/shaft
    Shock resistant 10GRMS, 10 ~ 1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof,

    wide temperature, shielding cable 8*0.3mm2

    Weight 150g (excluding boxes)

    Electrical parameters

    Parameters Condition min Typical values Max Unit
    The power supply voltage / 9 12 36 V
    Working current / / 20 / mA
    Normally closed maximum current / / 1000 / mA
    Working temperature / -40 / 85
    Storage temperature / -55 / 100
