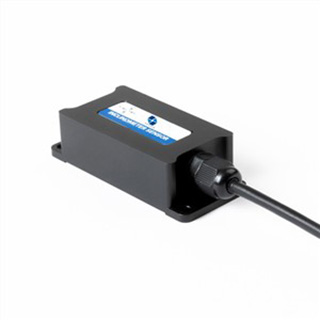

Digital Output Single Axis Tilt Sensor

Digital Output Single Axis Tilt Sensor

ER-TS-4156DI Features:
1. Single axis tilt monitoring;
2. Wide voltage input DC 9~36V;
3. Full range accuracy 0.1°, resolution 0.01°.

Digital Output Single Axis Tilt Sensor

Digital Output Single Axis Tilt Sensor

Get Price Now

    Digital Output Single Axis Tilt Sensor

    Introduction

    ER-TS-4156DI digital single axis tilt meter is a new generation of digital small-volume MEMS tilt meter, built-in dual-channel earth gravity tilt unit, which measures static gravity acceleration and converts it into tilt change. Thus the sensor output can be measured with respect to the horizontal plane tilt and pitch angle. The output mode has RS232, RS485 or TTL, MODBUS level interface to choose from. Due to the built-in MCU control system, the output linearity of the sensor has been corrected twice to make up for the loss of accuracy caused by the lack of analog correction.

    The product adopts non-contact measurement of the original quantity, which can output the current attitude and inclination in real time. The operation is simple, and there is no need to retrieve the two sides of the change. It can resist external electromagnetic interference and adapt to harsh industrial environment for long-term work, so it is an ideal choice for industrial automation control and platform attitude measurement.

    Features

    Single axis tilt monitoring

    Full range accuracy 0.1°, resolution 0.01°

    Industrial design

    Wide voltage input DC 9~36V

    Wide temperature working -40~+85℃

    Measuring range: 0~±180° (optional)

    High vibration resistance >3500g

    Baud rate 2400~115200 adjustable

    IP67 protection

    Output: RS232/RS485/TTL/MODBUS (optional)

    Small volume (90*40*27mm) (customizable)

    Applications

    High voltage power line tower pole monitoring

    Satellite solar antenna positioning

    Aerial work vehicle

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    Hydraulic lifting platform

    Tilt based monitoring

    Various construction machinery angle control

    Inspection of bridges and dams

    Specifications

    Digital Output Single Axis Tilt Sensor

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Digital Output Single Axis Tilt Sensor, pls contact us: info@ericcointernational.com
