Analog Type Two Axis Tilt Sensor

ER-TS-1228AN Features:
1. Two axis tilt monitoring;
2. Output 0~5V、4~20mA (optional);
3. Full range accuracy 0.001°, resolution 0.0005°.

Analog Type Two Axis Tilt Sensor

Get Price Now

    Analog Type Two Axis Tilt Sensor


    This is a standard industrial full temperature compensation high-precision analog output dual-axis tilt sensor, using standard voltage 0~5V, 0~10V, current 4~20mA, 0~20mA, 0~24mA (optional). At the same time, through RS232/CAN output, it can reach 2000 meters long distance transmission. The operator only needs to collect the voltage value of the sensor to calculate the current tilt angle of the object. The built-in (MEMS) solid pendulum can be converted into the change of the inclination angle by measuring the change of the static gravity field.

    Using MEMS sensor production technology, it can accurately compensate and correct temperature errors and linear errors. It has the characteristics of high precision, small size, high packaging technology and strong vibration resistance. Due to the built-in anti-radio frequency and anti-electromagnetic interference circuit, it is especially suitable for applications in harsh industrial environments such as underground non-excavation machinery.

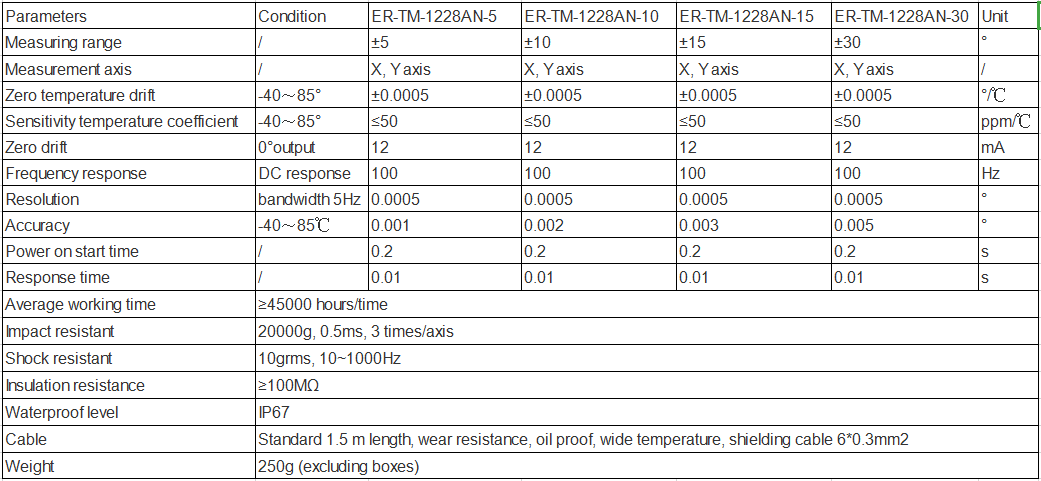

    Two axis tilt monitoring

    Full range accuracy 0.001°, resolution 0.0005°

    Output 0~5V、4~20mA (optional)

    Wide-voltage input DC 11~36V

    Wide temperature working -40~+85℃

    Range 0~±5/±10/±15/±30° (optional)

    High vibration resistance>20000g

    IP67 protection

    Output RS232 at the same time

    Volume (107*55*27mm) (customizable)


    High voltage wire tower monitoring

    Satellite solar antenna positioning

    Aerial work truck

    Mining machinery, oil logging equipment

    Medical equipment

    Tilting leveling

    Hydraulic lifting platform

    Inclination monitoring

    Angle control of various construction machinery

    Inspection of bridges and dams


    Analog Type Two Axis Tilt Sensor


    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Analog Type Two Axis Tilt Sensor, pls contact us:
