High Precision FOG

High Precision FOG

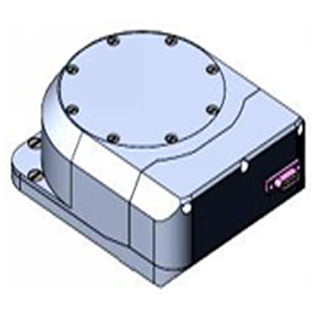

ER-FOG-115HC (0.003°/h)
1. High-precision FOG;
2. Special designed substitute of ring laser gyro;
3. Bias stability of (1σ): 0.003°/h.

High Precision FOG

High Precision FOG

Get Price Now



    Share to:

    Introduction

    High Precision FOG (Special Designed Substitute of Ring Laser Gyro)

    Introduction
    ER-FOG-115HC High Precision FOG (dedicated alternative to ring laser gyro) is a single-axis high-precision fiber optic gyroscope. It contains five optical devices, a signal detection board, a light source control circuit board and a power supply module. In terms of structure, the optical system and circuit system are separated and packaged. It is easy to install, easy to use and reliable. Operators can only use one plug, provide power supply and receive gyro output data. The product can replace the ring laser gyro and is used in attitude measurement, navigation, guidance and other fields.

    Specifications
    Measuring range: -500°/s~+500°/s;
    Bias stability of (1σ): 0.003°/h;
    Scale factor non-linearity (1σ): 5ppm;
    Random walk coefficient: 0.0004 (°/√h);
    Bandwidth: not less than 100Hz;
    Power consumption: less than 5W;
    Working temperature: M1A: -40°C to +60°C.

    Dimensions and Interfaces

    Dimensions 117mm*150mm*52mm
    Weight 1650±20g
    Mounting hole distance 80mm*108mm
    Mounting Screws M5
    Mounting surface accuracy Cylindrical Flatness≤0.01mm
    Power Supply ±24V DC (Power Accuracy ±5%, Ripple Less than 20mV)
    Output interface Complies with RS-422 interface standard
