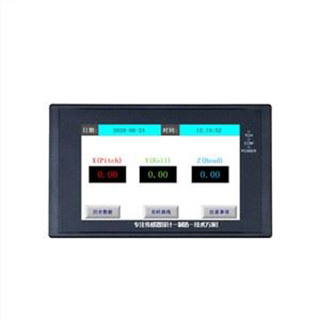

Touch Angle Digital Display

Touch Angle Digital Display

ER-DDTS-23 Features:
1. High resolution;
2. Sampling rate: 100HZ;
3. 4.3-inch LCD touch screen display.

Touch Angle Digital Display

Touch Angle Digital Display

Get Price Now

    Touch Angle Digital Display

    Introduction

    ER-DDTS-23 industrial sensor angle digital display can access all digital output sensor data in our products. The product is based on the Linux kernel high-performance embedded system, capable of fast, accurate, wireless or wired transmission and remote monitoring. The operation is simple, and the data can be stored in real time (optional). The product also uses a 4.3-inch high-brightness TFT LCD screen design and embedded configuration software (programmable by the users), with industrial image display and data processing functions.

    Through the peripheral angle sensor, engineers can directly use it by hand. The product can be matched with our inclination sensor and transmission mode (wired or wireless optional). Just like the following, wireless bluetooth<10m, zigbee<250m (optional); 1.5m wired standard (can be customized); RS232<: 25m, RS485<500m. The product is easy to operate and provides a zero adjustment function, which is convenient for practical applications and industrial fields.

    Features

    4.3-inch LCD touch screen display

    High resolution

    Sampling rate: 100HZ

    With data storage

    Wide temperature working -40~+85℃

    High seismic performance & GT; 20000 g

    Zero setting function

    A variety of combinations

    IP54 protection class

    Wired and wireless transmission (optional)

    Panel size (L226.5*M163mm)

    Applications

    Test the braking performance of motor vehicles

    Road platform measurement

    Instrument calibration and calibration

    Mining machinery, oil logging equipment

    Mechanical installation

    Tilt detection

    Tilt detection of geological equipment

    Tilt based monitoring

    Various construction machinery angle detection

    Inspection of bridges and dams

     Specifications

    Model ER-DDTS-23
    The LCD panel 4.3”TFT
    backlight LED
    According to the color 65535 True Color
    The resolution of the 800*480
    Display brightness 200cd/㎡
    Touch screen Resistance-type
    The processor HMI, 300 MHZ
    Memory 64M
    Storage 128M
    The system software Linux embedded System
    External interface RS232, RS485, RS422, CAN Interface Modbus Protocol (extensible)
    Working humidity 5%~90%
    Shell material Industrial plastic
    Size Panel size L142*M86mm, cabinet size L129.7* m75.5mm
    Product certification CE, FCC
    Waterproof level IP65 (front panel)
    Electromagnetic compatibility Industrial level 3
    The installation Mounted or vertical, or embedded in the cabinet
    Weight 205g (excluding boxes)

    Electrical indicators

    Parameters conditions Min Typical Value Max Unit


    Power supply



    DC power supply 24 /

    V

    Options Build in rechargeable battery
    Rated power / / 5 / W
    Working temperature / 0 / 45
    Storage temperature / -10 / 60

    FAQ

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
