Voltage Type High Precision Contactless Angle Sensor

Voltage Type High Precision Contactless Angle Sensor

ER-AS-20 Features:
1. Sampling rate: 1K HZ;
2. Full range accuracy 0.1°;
3. Output 0~5V, 0~10V optional.

Voltage Type High Precision Contactless Angle Sensor

Voltage Type High Precision Contactless Angle Sensor

Get Price Now

    Voltage Type High Precision Contactless Angle Sensor

    Introductions

    The R-AS-20 angle sensor is embedded with a microprocessor and combined with a CNC angle second-level calibration device. Through program calibration and conversion, it can achieve 0-10V, 0-5V, 0.1 high-precision measurement.

    The magnetic sensitive angle sensor has the characteristics of non-contact, long life, high resolution, low temperature drift, good linearity, fine reset, high frequency response, multiple protections, anti-interference, anti-vibration, and anti-shock characteristics, that is suitable for water, oil, gas, vibration, shock, especially harsh industrial environments, are also ideal alternatives to contact angle sensors (such as conductive plastic potentiometers).

    Features

    Sampling rate: 1K HZ

    Full range accuracy 0.1°

    Output 0~5V, 0~10V optional

    Wide voltage input DC 9~36V

    Wide temperature working -40~+85℃

    Angular resolution 0.022°

    High vibration resistance >20000g

    IP66 protection level

    Range 0~360°(optional)

    Linearity is 0.15%~0.5%

    Applications

    Railway gauge

    Satellite solar antenna positioning

    Towed motor control

    Mining machinery, oil logging equipment

    Medical equipment

    Gimp leveling

    Liquid valve: angle actuators

    Angle-based control

    Various construction machinery angle control

    Textile machinery

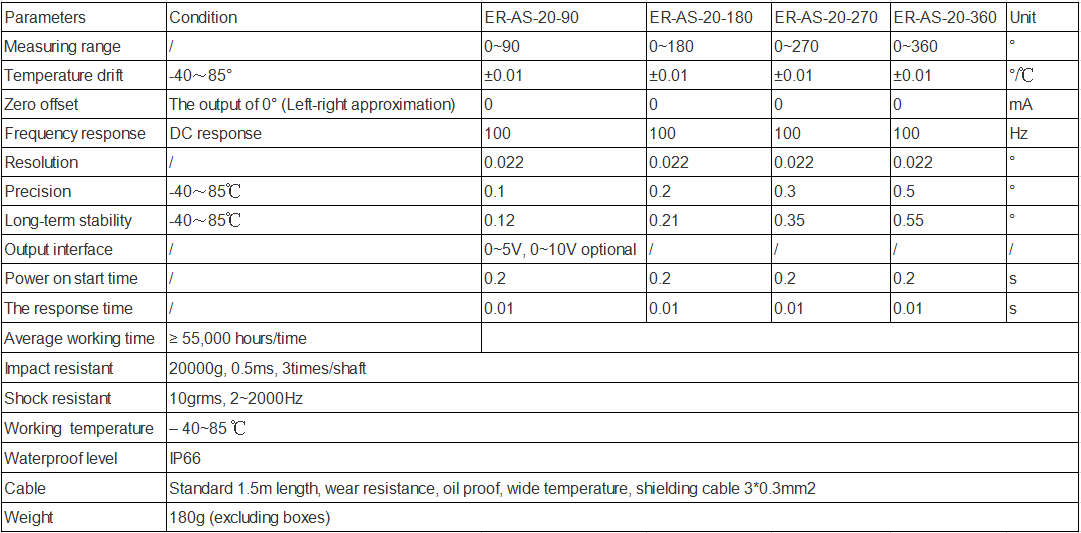

    Specifications

    Voltage Type High Precision Contactless Angle Sensor

    Electrical indicators

    Parameters Condition Min Typical Value Max Unit
    The power supply voltage / 9 12 36 V
    Working current / / 20 / mA
    Reverse power protection / / 40 / V
    Signal reverse protection / / 40 / V
    The output load Resistivity / 2 / KΩ
    Working temperature / -40 / 85
    Storage temperature / -55 / 100

    FAQ

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Voltage Type High Precision Contactless Angle Sensor, pls contact us: info@ericcointernational.com
