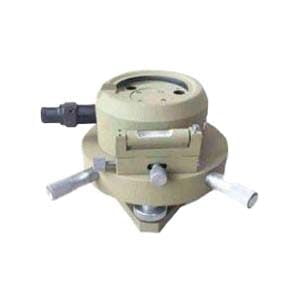

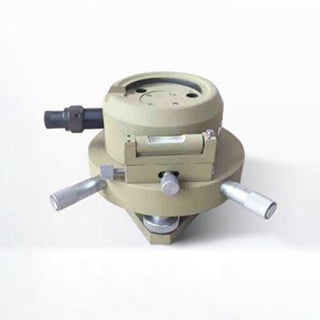

ER-JDY-01 Precision Alignment Instrument
Introduction
Precision Alignment Instrument can be used in conjunction with the total station. The theodolite, blade, and prism have a three-claw structure to meet the measurement needs of precision engineering surveying and mapping units.
Specifications
| Alignment precision | 1:10000 (At 1.5m ≤0.2mm |
| Optical system | erect image |
| Magnification | 8X |
| Field angle | 3.5" |
| Focusing range | 0.5m-5m |
| Outline | Tall: ≤130mm ED: ≤170mm |
| Deadweight | ≤4Kg |
| Bearing weight | ≤10Kg |
