Raw Rate Gyro Attitude Heading Reference System

Features:
1.Composed of single degree of freedom FOG gyro and control box.
2.Used in big size ship for long voyage in bumping waters;

Send Inquiry
Raw Rate Gyro Attitude Heading Reference System

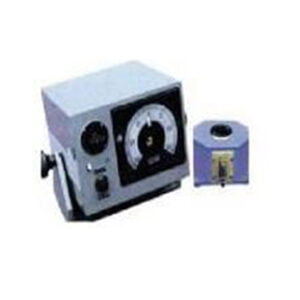

ERZ-3 raw rate gyro





ERZ-3 Raw rate gyro is composed of single degree of freedom gyro and control box. Its control box is made of gyro motor(440HZ,55V), feedback amplifier, self-checking circuit and so on. It is perfectly used in big size ship for long voyage in bumping waters.


The main performance as follows:

1.Sensitivity and resolution: 0.1°/min

2.Successive non-repeatability: 0.3°/min

3.Linearity: 0.3°/min

4.Full measuring range: ±30°/min or 90°/mi n ;

5.Indicating meter full scale error: ±1. 5°/min ;

6.Response time: ≤0.35s;

7.Start-up time: 5min ;

8.Ambient Temperature: -10℃~+50℃

9.Input power: 50Hz220V[(1+6%)/(1-10%)]

10.Consumed power: 35W

11.Life: 20000 Hours

12.Size:

Control box: 250*256*180mm³

Gyroscope: 100*130*90mm³

13.Weight: gyroscope: 2.5kg    Control box: 12kg


1.Gyro Motor   2. Gimbal   3.Supporting   4.Angular transducer   5.Torquer   6.Feedback amplifier



ERICCO is expert in high quality raw rate gyro attitude heading reference system manufacturing and selling, who is one of the best manufacturers and suppliers of raw rate gyro attitude heading reference system with high precision. We have a professional factory at your service.
