Standard Version CAN Bus Non-Contact Angle Sensor

Standard Version CAN Bus Non-Contact Angle Sensor

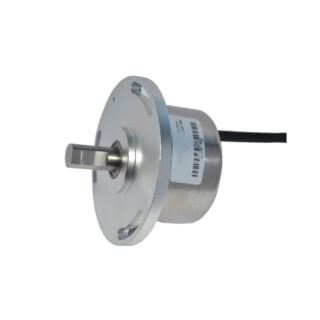

ER-AS-15 Features:
1. Sampling rate: 1K HZ;
2. Full range accuracy 0.3°;
3. Output CAN bus.

Standard Version CAN Bus Non-Contact Angle Sensor

Standard Version CAN Bus Non-Contact Angle Sensor

Get Price Now

    Share to:

    Introduction

    Standard Version CAN Bus Non-Contact Angle Sensor

    Introduction
    ER-AS-15 magnetic sensing angle sensor uses MEMS technology to integrate the nano magnetic cluster thin film material and the differential array magnetic sensor element to produce a non-contact induction rotating magnetic field change. The system integrates a microcomputer, voltage and current transmitters and various circuit protections. Programmable intelligent control is set by DSP processing, linearity correction, temperature compensation, output signal standardization according to range, digital filtering, zero setting and multi-level different slopes, achieve 0~360° range.
    Through CAN bus output, the angle resolution is 0.022°, the full range accuracy is 0.3°, and the output frequency is 100Hz. The product has the characteristics of non-contact, long life, high resolution, low temperature drift, good linearity, fine reset, high frequency response, multiple protections, anti-interference, anti-vibration, and anti-shock characteristics, that is, it is suitable for water, oil, gas, vibration, shock, especially harsh industrial environments, are also ideal alternatives to contact angle sensors (such as conductive plastic potentiometers).

    Features
    Sampling rate: 1K HZ
    Full range accuracy 0.3°
    Output CAN bus
    Wide voltage input DC 9~36V
    Wide temperature working -40~+85℃
    Angular resolution 0.022°
    High vibration resistance >20000g
    IP66 protection level
    Range 0~360°(optional)
    Linearity is 0.15%~0.5%

    Application
    Railway gauge
    Satellite solar antenna positioning
    Towed motor control
    Mining machinery, oil logging equipment
    Medical equipment
    Gimp leveling
    Liquid valve: angle actuators
    Angle based control
    Various construction machinery angle control
    Textile machinery

    Specifications

    ParameterConditionER-AS-15-90ER-AS-15-180ER-AS-15-270ER-AS-15-360Unit
    Measuring range/0~900~1800~2700~360°
    Temperature drift-40~85°±0.0015±0.0015±0.0015±0.0015°/℃
    Sensitivity temperature coefficient-40~85°<150<150<150<150ppm/℃
    Frequency responseDC response100100100100Hz
    The resolution of the/0.0220.0220.0220.022°
    Precision-40~85℃0.30.50.61°
    Long-term stability-40~85℃0.0550.0630.080.12°
    Output interface/CAN
    Power on start time/0.20.20.20.2s
    The response time/0.010.010.010.01s
    Average working time≥55,000 hours/time
    Impact resistant20000g, 0.5 ms, 3 times/shaft
    Shock resistant10grms, 2~2000Hz
    The use of temperature-40~85℃
    Waterproof levelIP66
    CableStandard 1.5m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.3mm²
    Weight120g (excluding boxes)

    Electrical indicators

    ParametersConditionMinTypical ValueMaxUnit
    The power supply voltage/91236V
    Working current//20/mA
    Reverse power protection//40/V
    Signal reverse protection//40/V
    The output loadResistivity/2/kΩ
    Working temperature/-40/85
    Storage temperature/-55/100

    Application Techniques
